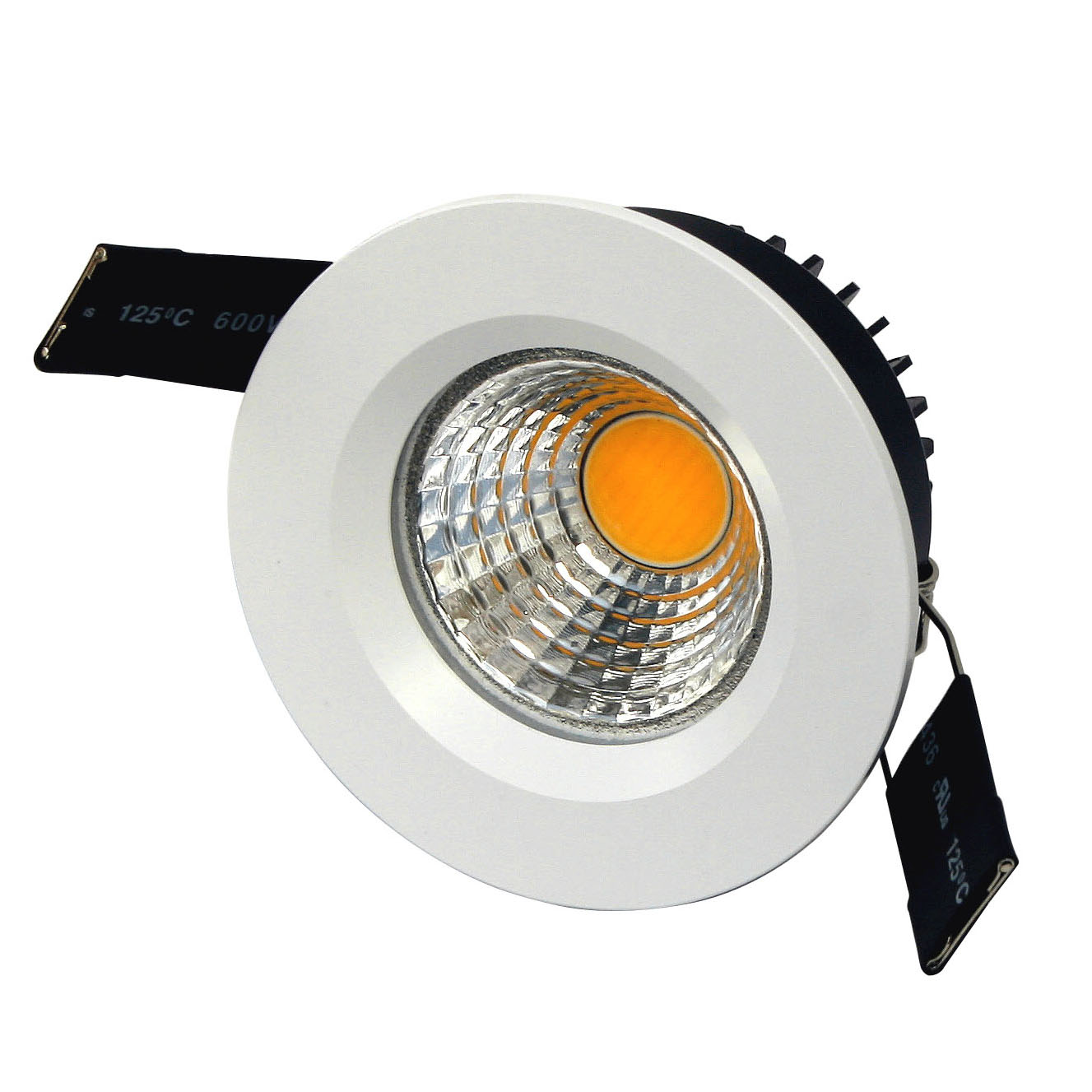

COB LED Ceiling Light LED Downlight 15W/20W/30W

Item No.: 157
INQUIRY
Description

Product Description(Led down light)

1, New design, Easy to install. Ceiling reccessed mounted. Driver inlcuded
2, High lumen output, high luminous efficacy, COB as light source. Up to 80-100 lumen/W
3, Good light distribution makes light more soft and uniform.
4, Led source: Epistar chip
5, Colour: Warm White(2800- 3500K);White (6000-6500K)
6, Input Voltage: AC85-265V,DC12V
7, LED Driver: Eagerise
8, LED working temperature: -35°C - +65°C
9, Long life span reaches 50,000hrs
10, Approved:CE/RoHS
11, Warranty: 2 years

Parameters(COB downlight led)

Specification of led down light
Power: 5W   7W   9W 15W     20W     30W
Material: Aluminum
Type of chip: Import High Power LED Chip
Brand of chip: EPISTAR
Luminous: 80LM/W
Color Temperature: 2700 - 6500K
CRI: Ra≥75
Beam Angle: 90°
PF: >0.6
IP: IP44
Working life ≥50000 Hrs
Warranty: 2 years
Dimensions
Finishing Color: White/Black
Shape Round
Size: 90*50mm 100*50mm 130*50mm 163*50mm 190*50mm 220*50mm
Cut-out Φ65mm Φ75mm  Φ100mm   Φ130mm Φ160mm Φ185mm
Work Environment
Input Voltage: AC90-265, 50-60Hz
Operating Temperature: -25° ~ 45°
Application
Application: hotel,home,commercial shop, office,lobby,cabinet.etc
