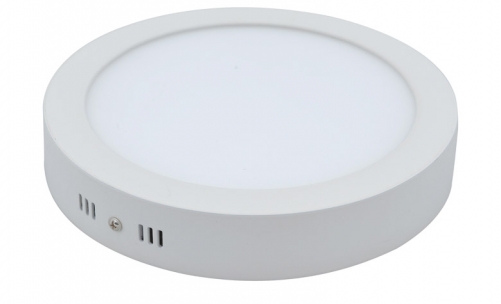

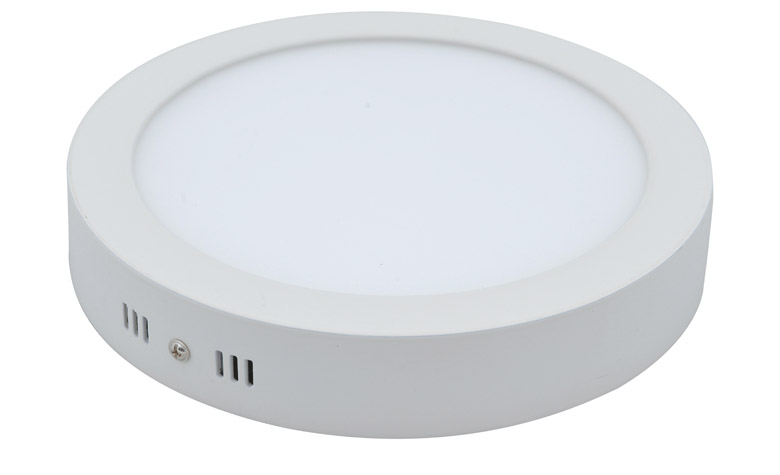

| The Specification of LED Panel Light Surface Mounted | ||||||
| Item No. | YF-DG0303R | YF-DG0603R | YF-DG1203R | YF-DG1803R | YF-DG2403R | |
| Powder Consumption |
3W | 6W | 12W | 18W | 24W | |
| Dimension | 86x45mm | 120x45mm | 170x45mm | 225x45mm | 300x45mm | |
| Shape | Round | |||||
| Lumous flux | 80lm/W | |||||
| LED Power Supply | External constant current IC driver | |||||
| AC Input | AC85~265V (AC375V available on request) | |||||
| DC Input | DC12~96V (DC12V, DC24V and other input available on request) | |||||
| LED Light Source | SMD 2835 0.2W/pc | |||||
| 0.2Wx15pcs | 0.2Wx30pcs | 0.2Wx60pcs | 0.2Wx90pcs | 0.2Wx120pcs | ||
| Color Temperature |
2700~6500K | |||||
| Beam Angle | 120° | |||||
| Color Rendering Index | ≥Ra75 | |||||
| Working Life | ≥50000Hrs | |||||
| Working Temperature | -20℃~60℃ | |||||
| Housing | Aluminum | |||||
| Surface Treatment | White painted/ Spray Nickel | |||||
| IP Class | IP33 | |||||
| Warranty | LED Chip | 2 Years | ||||
| Driver | 2 Years | |||||
| Housing | 5 Years | |||||
| Brand of Products | SHINYLAND & Customized | |||||
| Certificate | CE, RoHS | |||||
| Payment Terms | By T/T , Western Union , L/C etc. | |||||
