Round LED Panel Light Specifications:
|
Model |
Size(mm) |
Voltage(V) |
output power(w) |
Lumen(lm) |
color tempt(k) |
CRI(Ra) |
|
3W85 |
Ф85*13*65MM |
Ac85-265V |
3W |
240lm |
2700-7000k |
80/75 |
|
4W105 |
Ф105*13*90MM |
Ac85-265V |
4w |
320lm |
2700-7000k |
80/75 |
|
9W145 |
Ф145*13*130MM |
Ac85-265V |
9w |
720lm |
2700-7000k |
80/75 |
|
12W180 |
Ф180*13*160MM |
Ac85-265V |
12w |
960lm |
2700-7000k |
80/75 |
|
15W200 |
Ф200*13*180MM |
Ac85-265V |
15w |
1200lm |
2700-7000k |
80/75 |
|
18W225 |
Ф220*13*200MM |
Ac85-265V |
18w |
1440lm |
2700-7000k |
80/75 |
|
20W240 |
Ф240*13*220MM |
Ac85-265V |
20w |
1600ln |
2700-7000k |
80/75 |
|
24W300 |
Ф300*13*280MM |
Ac85-265V |
24w |
1920lm |
2700-7000k |
80/75 |

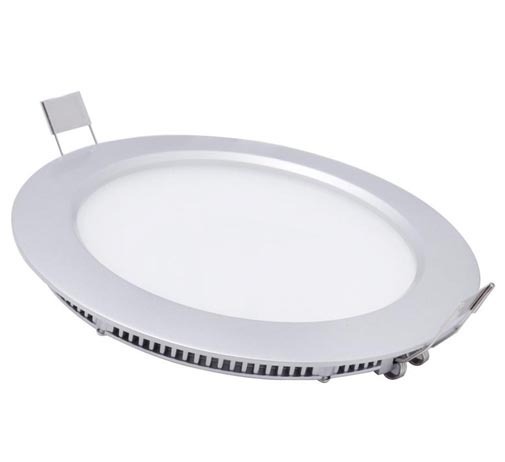

Round led panel light Product Description
1. LED panel is a kind of advanced indoor light, which inherits the characteristics of simplicity and classics of Europe style. It is gaining the favor of customers for its super thin profile and clear bright light effect. LED panel creates a strong sense of depth and space when applied in indoor places such as meeting room, VIP reception room, and hotel.
2. The frame is made of 6063 aluminum alloy with anodic oxidation treatment, which is very good in heat dissipation. Light source is 3535 LED, which can create a flat lighting effect when its light pass through the light guide plate.
3. LED panel is more energy saving and environment protecting with longer life than traditional light products. Its light is well-proportioned, soft, comfortable and bright.
Round LED Panel Light Advantage:
Ultra slim design
High brightness 2835 chip,Up to 26 lumen/chip
High efficiency isolated driver, Constant Current Control IC for Transmission
Over 90% light transmission makes the light softly and brightly
Low maintenance cost. Life span: >50,000 hours
Instant on no flicker or hum
Emit NO UV or IR radiation, environmentally friendly
Universal input voltages available for North America, Latin America, Europe, Asia
Up to 5 years warranty base on different price and products
CE&ROHS approved
Power:3W/4W/6W/9W/12W/15W/18W/20W/24W
Color temperature:2800-7000
Lead time,1000-10000 within 7days,10,000-30,000 within 15days
High efficiency constant current drive system, with heat protection system
Over 90% light transmission makes the light softly and brightly
Low maintenance cost. Life span: >50,000 hours
Instant on no flicker or hum
Emit NO UV or IR radiation, environmentally friendly
Universal input voltages available for North America, Latin America, Europe, Asia
CE, RoHS and FCC certifications
